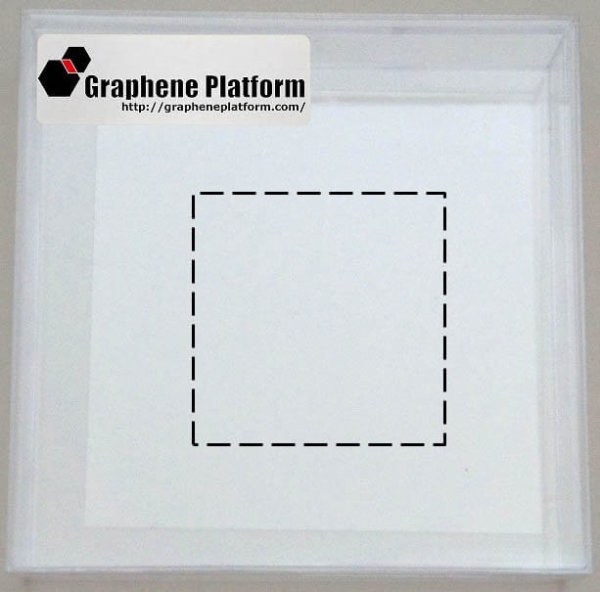

Single-layer Graphene on Glass: 2″x2″

Price: $600

Out of stock

Lead time: Out of Stock

QA Data:
Multipoint Raman spectra included on CD ROM

Typical Raman spectrum of a single layer film Transferred on Glass

Explanation of Raman spectrum

  1. Raman spectroscopy is used to check the presence of a D peak in graphene samples. If a D peak is present, then this can indicate defects in the sample, such as cracks or flaking.
  2. The ratio of the heights of the 2D peak and the G peak indicate the number of graphene layers.
    2D>G : Single-layer
    2D=G : Double layer
    2D<G : more than triple layer
  3. 3 measurements for every sample are taken and presented on the same graph.

Specification of a Quartz Glass

Material : Synthetic Silica Glass

Thickness : 2.0mm +/- 0.1mm (0.0787 inch)

Surface : Optical Polishing (Both side)

Parallelism : 0.1°

Military Standard : MIL20-10

Spectral Transmission Factor : 93% (WL:550nm)

(Representative Value)
