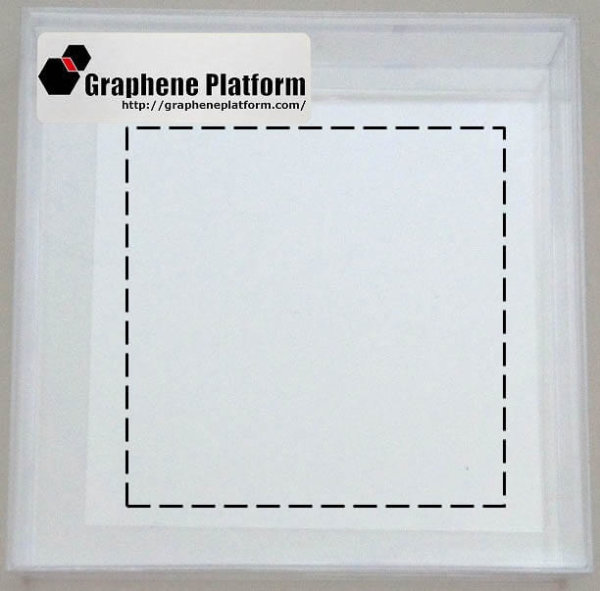

Single-layer Graphene on PET: 3″x3″

Price: $850

Out of stock

Lead time: Out of Stock

QA Data:
Multipoint Raman spectra included on CD ROM

Typical Raman spectrum of a single layer film Transferred on PET

Explanation of Raman spectrum

  1. Raman spectroscopy is used to check the presence of a D peak in graphene samples. If a D peak is present, then this can indicate defects in the sample, such as cracks or flaking.
  2. The ratio of the heights of the 2D peak and the G peak indicate the number of graphene layers.
    2D>G : Single-layer
    2D=G : Double layer
    2D<G : more than triple layer
  3. 3 measurements for every sample are taken and presented on the same graph.

Specification of a PET film

Material – PET (Polyethyleneterephtalate) –

Thickness : 0.188 mm (0.0074 inch)

Haze : 0.9%

Light transmission : 92%

Tensile Strength MD:179MPa TD:197MPa


Tensile elongation MD:132% TD:99%

Coefficient of Static Friction : 0.46

Coefficient of Kinetic Friction : 0.40

Coefficient of Thermal expansion MD:0.9% TD:0.7%

(Representative Value)
